Product Details:
Payment & Shipping Terms:
|
| Density: | 64kg/m3,80kg/m3,96kg/m3 | Fiber Diameter: | 5 - 8mm |
|---|---|---|---|
| Length: | 1000mm, 910mm | Product Name: | Glass Wool Pipe Cover |
| Service Temperature: | 450 °C | Material:: | Fibre Glasswool |
| High Light: | high temperature pipe insulation,fiberglass pipe insulation,Fire Retardant glass wool pipe insulation |
||

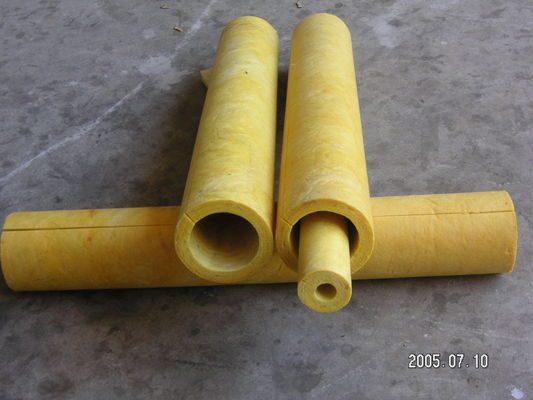

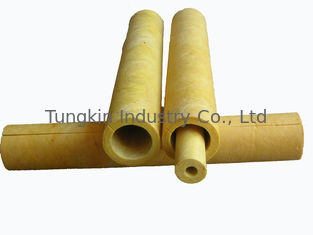

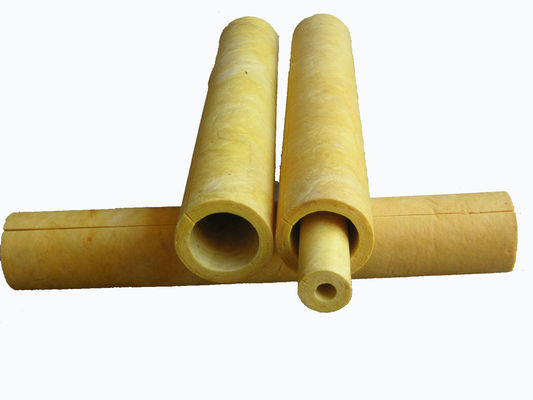

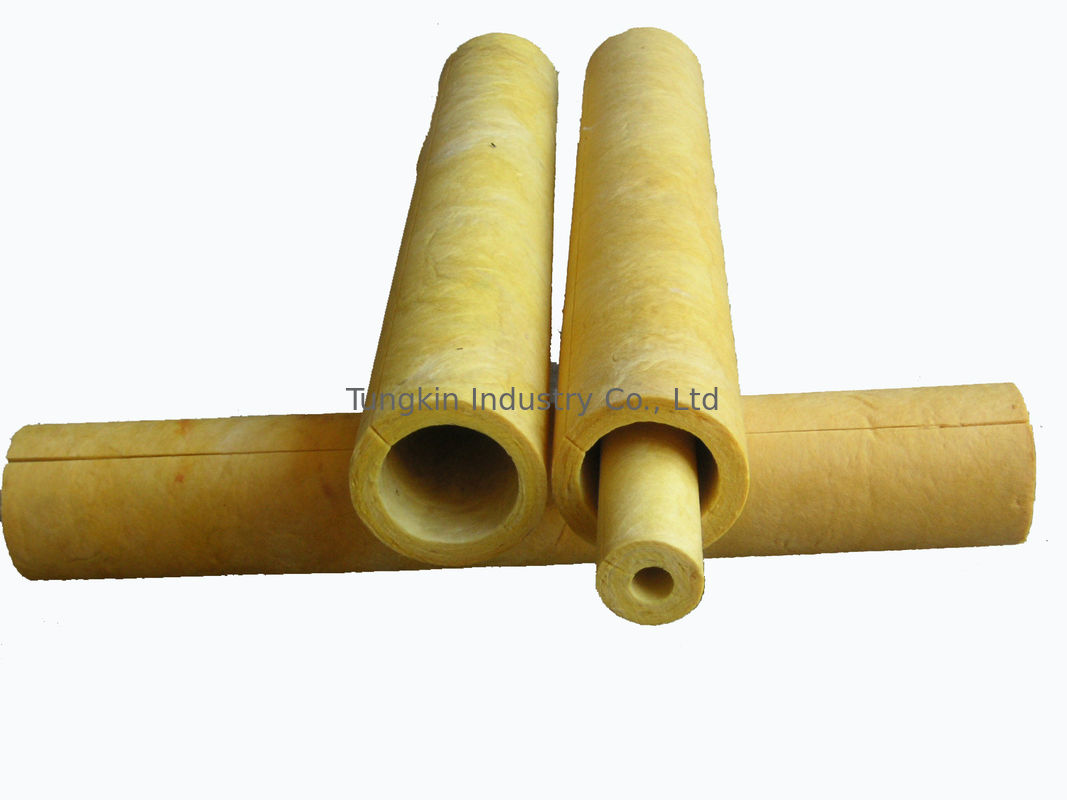

High Temperature Glass Wool Pipe Insulation For Construction , Fire Retardant
Glasswool sectional pipe
Quick Detail:
With excellent thermal and insulation features the rigid glasswool pipe is an ideal insulation material for both hot and cold pipe works.
Description:
Tungkin glasswool pipe cover is composed of fine, stable and uniformly textured inorganic glass fibers bonded together by a non-water soluble and fire-retardant thermosetting resin. It is free from coarse fibers and shot due to its mineral composition, molded in one-piece sections and made with a single seam.
Applications:
Tungkin glasswool pipe cover is intended for use in commercial, institutional, industrial and residential construction and in power and process plants as thermal and acoustical insulation for hot or cold, concealed or exposed piping where temperatures are between -18°°C and +450 °C
Specifications
Standard diameter and thickness :
|
Dia(mm) |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
||||
|
22 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
28 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
34 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
43 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
48 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
60 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
76 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
89 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
114 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
140 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
169 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
219 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
273 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
325 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
377 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
426 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
478 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
529 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
||||
|
Density |
64kg/m3,80kg/m3,96kg/m3 |
||||||||||||
|
Length |
1000mm, 910mm |
||||||||||||
*Other sizes are available upon request
Main Technical Property
|
Item
|
Unit |
Data |
|
Density |
Kg/m3 |
64,80,96 |
|
Tolerance of Density |
% |
+15 |
|
Thermal Conductivity At 24°C(+5-2) |
W/(m.k) |
<=0.032 |
|
Combustibility |
|
(A) Non-combustible |
|
Service Temperature |
°C |
>=450 |
|
Fiber Diameter |
mm |
5-8 |
|
Shot Content |
% |
<=0.2 |
|
Water Resistance |
% |
<=1.0 |
Chart of Thermal conductivity:
Competitive Advantage:
Excellent thermal performance
Easy to handle and fabricate
Low cost installation
Good compressive strength
Non combustible
