Product Details:
Payment & Shipping Terms:
|
| Color: | Yellow, White | Density: | 32, 36, 40, 44, 48, 64, 80, 96 Kg/m3 |
|---|---|---|---|
| Product Name: | Glass Wool Board | Service Temperature: | 300°C ，350 °C ，400 °C |
| Thickness: | 15 - 75 Mm | Feature: | Thermal And Acoustical Insulation |
| Material:: | Fiber Glass | ||
| High Light: | Air Conditioning Duct Board,fiberglass insulation panels,Sound absorption glass wool acoustic board |
||
Acoustic Insulation Glass Wool Board , Fiberglass Air Conditioning Duct Board
Quick Detail:

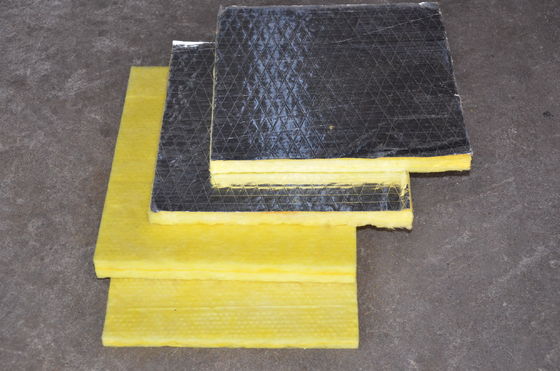

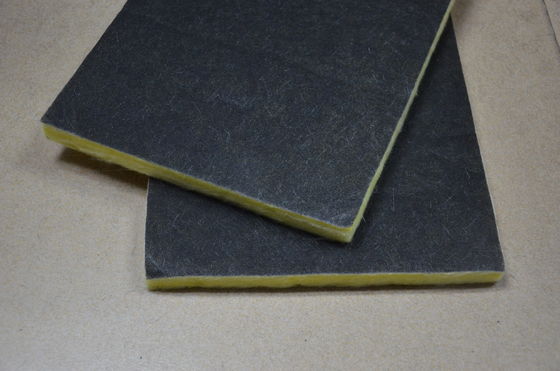

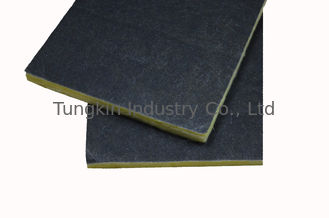

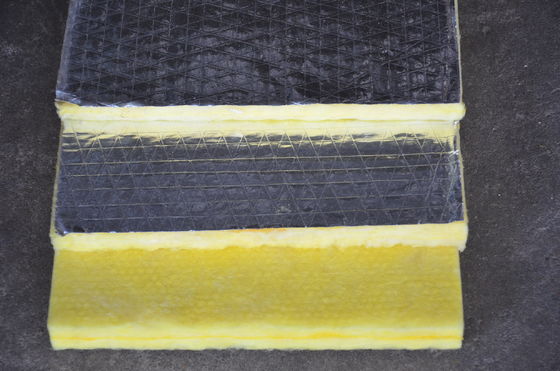

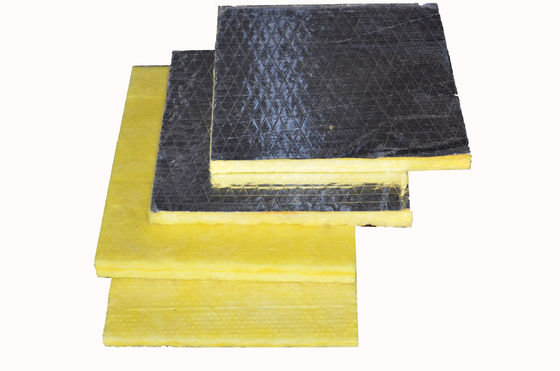

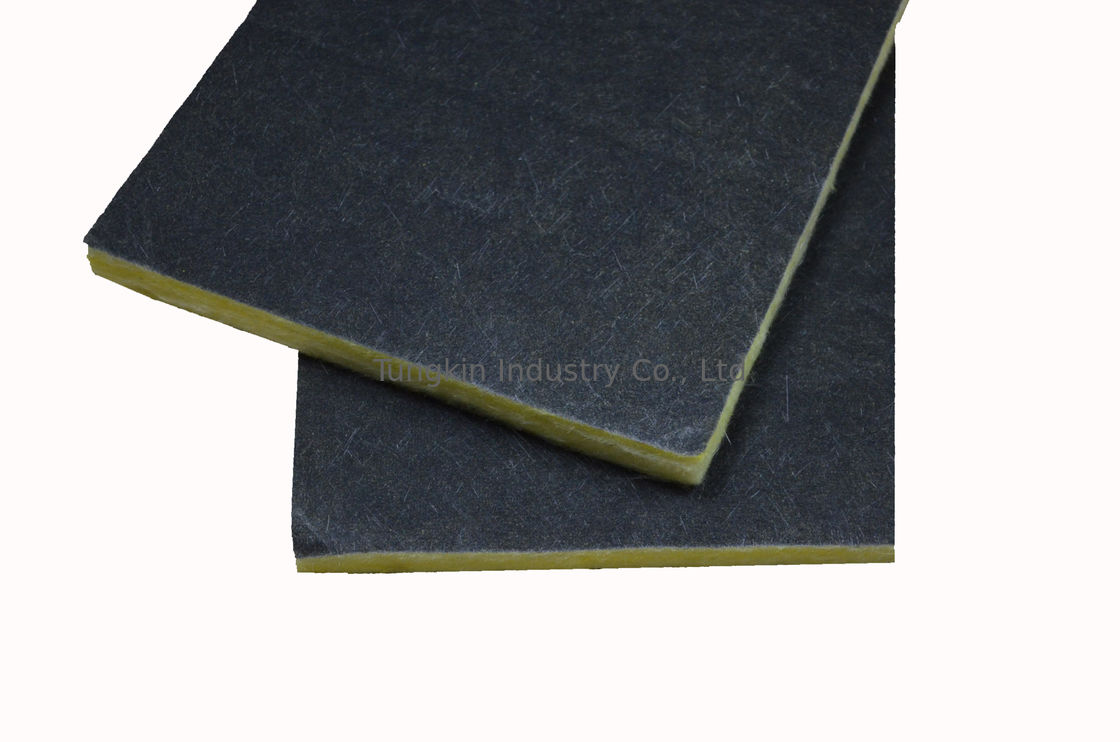

Glasswool board faced with aluminum foil or black tissue suitable for manufactured the duct of the air conditioning
Description:
Tungkin glasswool ducting board is composed of fine, stable and uniformly textured inorganic glass fibers bonded together by non water soluble and fire-retardant thermosetting resin. It usually faced with one side of aluminum foil (FSK) or black glass tissue (BGT)
Applications:
Tungkin glasswool ducting board is intended for use in commercial, institutional, industrial and residential construction as thermal and acoustical insulation for the exterior of duct work of air- conditioning.
Specifications:
Standard size:
|
Density Kg/m3 |
Thickness mm |
Length mm |
|
32 |
20, 25, 75 40, 50, 75 |
1000-2400 |
|
36 |
15, 20, 25, 30 40, 50, 75 |
|
|
40 |
Width (mm)
600,1200
|
|
|
44 |
||
|
48 |
||
|
60 |
15, 20, 25 |
|
|
64 |
||
|
80 |
||
|
96 |
Main Technical data:
|
Density (Kg/m3) |
Tolerance |
Thermal Conductivity At 24°C(+5-2) |
Service Temperature
|
Fiber Diameter
|
Shot Content
|
Moisture Resistance
|
Combustibility |
|
|
|
W/ (m.k) |
°C |
mm |
% |
% |
|
|
32 |
±3 |
<=0.034 |
>=300 |
5-8 |
<=0.2 |
<=1.0 |
(A) Non-combustible |
|
36 |
|||||||
|
40 |
+4 -3 |
<=0.034 |
>=350 |
||||
|
44 |
|||||||
|
48 |
<=0.033 |
||||||
|
60 |
±6 |
>=400 |
|||||
|
64 |
<=0.032 |
||||||
|
80 |
±7 |
||||||
|
96 |
±8 |
Chart of Thermal conductivity:
Sound Absorption Coefficient
(Reverberation room method
|
Density (kg/m3)
|
Thickness (mm) |
250,500,1000,2000HZ (Average) |
|
32,36,40,44 |
25,40 |
0.6 |
|
50,75 |
0.8 |
|
|
48 |
15 |
0.4 |
|
20,25 |
0.6 |
|
|
40,50 |
0.8 |
|
|
64, 80, 96 |
15 |
0.4 |
|
20,25 |
0.6 |
Competitive Advantage:
Sound absorption, save energy
