Product Details:
Payment & Shipping Terms:
|
| Color: | Yellow, White | Density: | 24, 28, 32, 36, 40, 44, 48, 64, 80, 90 Kg/m3 |
|---|---|---|---|
| Product Name: | Glass Wool Board | Thickness: | 15 - 100 Mm |
| Material:: | Fiber Glass | Feature:: | Thermal And Acoustical Insulation |
| High Light: | glass wool sheet,Air Conditioning Duct Board,28kg/m3 glasswool insulation board |
||
Fiber Glass Wool Board , Glasswool Mechanical Board Insulation
Quick Detail:

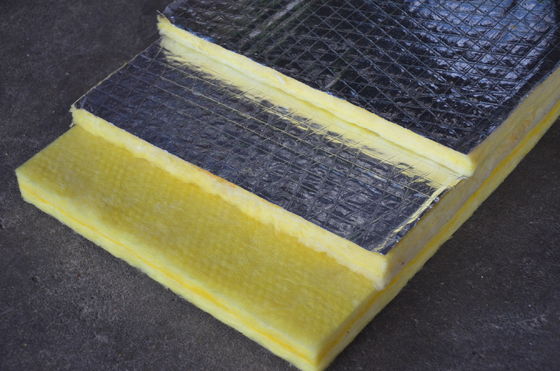

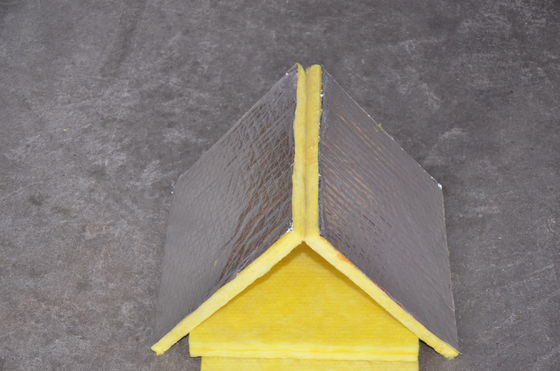

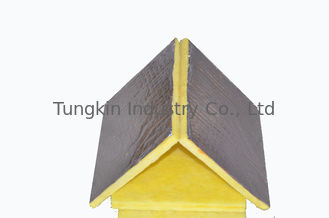

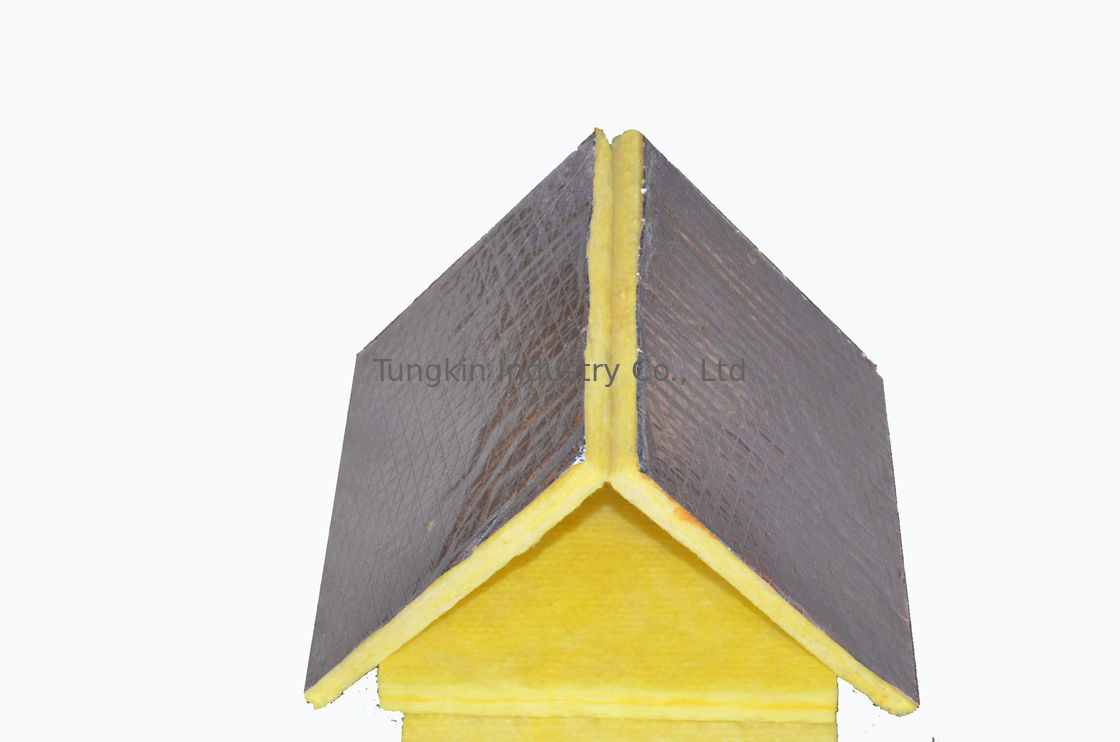

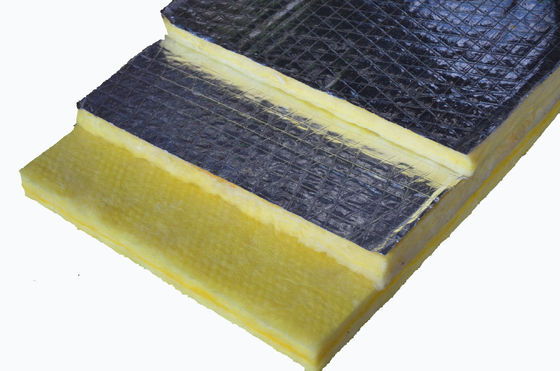

Semi-rigid and rigid glasswool mechanical board faced with aluminum foil as thermal and insulation material for the exterior of duct work and mechanical, air handling equipment, vessels and tanks where abuse resistance is required.
Description:
Tungkin glasswool mechanical board insulation is composed of fine, stable and uniformly textured inorganic glass fibers bonded together by non water soluble and fire-retardant thermosetting resin.
Applications:
Tungkin glasswool mechanical board insulation is usually faced with aluminum foil is intended for use in commercial, institutional, industrial and residential construction as thermal and acoustical insulation for the exterior of duct work and mechanical, air handling equipment, vessels and tanks where abuse resistance is required.
The semi-rigid boards are flexible insulation boards for application over irregularly-shaped surfaces where board-like properties are desired. The rigid boards are even more rigid for strength, abuse resistance and a flat appearance.
Specifications:
Standard size:
|
Density |
Thickness |
Length mm
1000-2400 |
|
Kg/m3 |
mm |
|
|
|
|
|
| 24 |
25 , 30, 40 50, 75 |
|
|
28 |
20, 25, 75 40, 50, 75 |
|
|
32 |
||
|
36 |
15, 20, 25, 30 40, 50, 75 |
|
|
40 |
Width (mm)
600,1200
|
|
|
44 |
||
|
48 |
||
|
60 |
15, 20, 25 |
|
|
64 |
||
|
80 |
||
|
96 |
Main technical data
|
Density (Kg/m3) |
Tolerance |
Thermal Conductivity At 24°C(+5-2) |
Service Temperature
|
Fiber Diameter
|
Shot Content
|
Moisture Resistance
|
Combustibility |
|
W/ (m.k) |
°C |
mm |
% |
% |
|
||
|
24 |
±2 |
<=0.035 |
>=250 |
5-8 |
<=0.2 |
<=1.0 |
(A) Non-combustible |
|
28 |
|||||||
|
32 |
±3 |
<=0.034 |
>=300 |
||||
|
36 |
|||||||
|
40 |
+4 -3 |
<=0.034 |
>=350 |
||||
|
44 |
|||||||
|
48 |
<=0.033 |
||||||
|
60 |
±6 |
>=400 |
|||||
|
64 |
<=0.032 |
||||||
|
80 |
±7 |
||||||
|
96 |
±8 |
Chart of Thermal conductivity:
Sound Absorption Coefficient
(Reverberation room method
|
Density (kg/m3)
|
Thickness (mm) |
250,500,1000,2000HZ (Average) |
|
24, 28 |
25, 40 |
0.6 |
|
50, 75, 100 |
0.8 |
|
|
32,36,40,44 |
25,40 |
0.6 |
|
50,75 |
0.8 |
|
|
48 |
15 |
0.4 |
|
20,25 |
0.6 |
|
|
40,50 |
0.8 |
|
|
64, 80, 90 |
15 |
0.4 |
|
20,25 |
0.6 |
