| Density: | 10, 12, 16, 20, 24 Kg/m3 | Length: | 7500 ~ 30000 Mm |
|---|---|---|---|
| Product Name: | Glass Wool Blanket | Surface: | Aluminum Foil |
| Thickness: | 25 - 100 Mm | Width: | 15000~30000 Mm |
| High Light: | glass wool felt,fiberglass blanket insulation,glass wool blanket with aluminum foil |
||

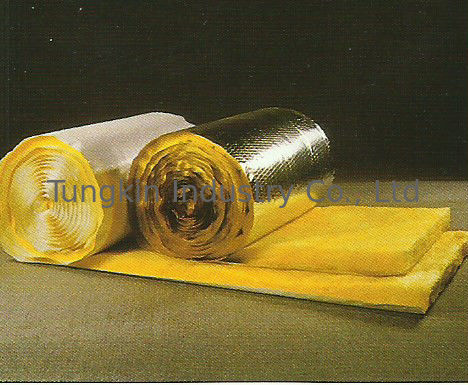

Aluminum Foil Glass Wool Blanket Fire Insulation For Metal Building
Quick Detail: GLASSWOOL BLANKET INSULATION FOR METAL BUILDING usually faced with aluminum foil or white metalized scrim kraft has excellent thermal and insulation and sound absorption properties.
Description:
GLASSWOOL BLANKET INSULATION FOR METAL BUILDING is a highly efficient, resilient, and easy to handle flexible blanket insulation composed of fine, stable and uniformly textured inorganic glass fibers bonded together by a non-water soluble and fire-retardant thermosetting resin. It can be laminate with different facing materials including reinforced aluminum foil (FSK), White metalized scrim kraft (WMSK) etc for some particular purposes.
Applications:

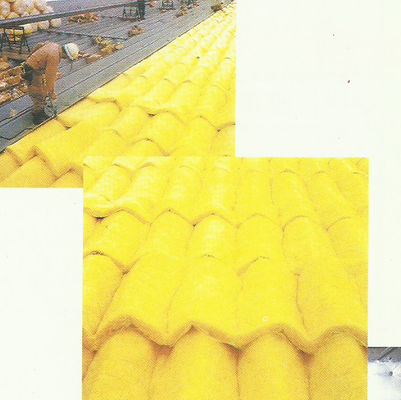

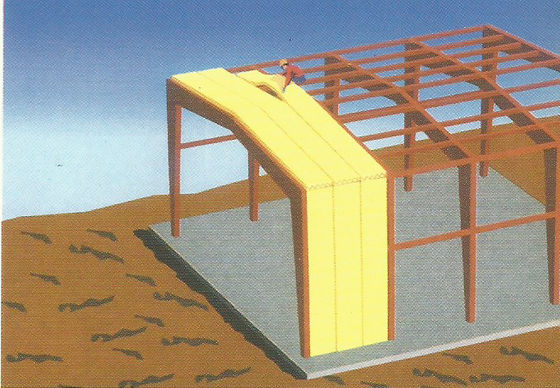

Tungkin GLASSWOOL BLANKET INSULATION FOR METAL BUILDING is manufactured specifically for use in the roofs and the side walls of commercial, industrial, residential, agricultural and poultry farms metal building construction.This insulation greatly reduces heat gain or loss through the building evelope.It will not rot, disintegrate or slump.
GLASSWOOL BLANKET INSULATION FOR METAL BUILDING is available with faced with aluminum foil (FSK), white metalized scrim kraft or other specific vapor barrier facings.
The choice of proper facing is important it helps to preserve the inherent fire safety of metal building. The facings brighten the building interiors due to their high light reflectance, reduce the cost of interior lighting, contribute to and effective vapor barrier and to the control of condensation and dripping moisture.
specifications:
Standard product sizes:
|
Density (Kg/m3) |
10 |
12 |
16 |
20 |
24 |
|
Thickness (mm) |
|
38 |
25 |
25 |
25 |
|
50 |
50 |
40 |
40 |
40 |
|
|
75 |
75 |
50 |
50 |
50 |
|
|
100 |
100 |
75 |
75 |
75 |
|
|
150 |
150 |
100 |
100 |
100 |
|
|
|
|
|
|
|
|
|
Length (mm) |
7500~30000 |
||||
|
Width (mm) |
15000~30000 |
||||
Other size can be made upon request.
Main Technical data
|
Density
|
Tolerance |
Thermal Conductivity At24°C(+5-2) |
Service Temperature
|
Fiber Diameter
|
Shot Content
|
Moisture Resistance
|
Combustibility |
|
(Kg/m3) |
|
W/ (m.k) |
°C |
mm |
% |
% |
|
|
10 |
+2 -1 |
<=0.04 |
>=350 |
5-8 |
<=0.2 |
<=1.0 |
(A) Non-combustible |
|
12 |
<=0.039 |
||||||
|
16 |
±2 |
||||||
|
20 |
<=0.037 |
||||||
|
24 |
<=0.035 |
>=350 |
|||||
|
28 |
|||||||
|
32 |
±3 |
Chart of Thermal conductivity
(Reverberation room method)
|
Density (kg/m3)
|
Thickness (mm) |
250,500,1000,2000HZ (Average) |
|
10, 12 |
50 |
0.6 |
|
75, 100 |
0.8 |
|
|
16,20 |
25 |
0.4 |
|
40, 50 |
0.6 |
|
|
75, 100 |
0.8 |
|
|
24 |
25, 40 |
0.7 |
|
50,75, 100 |
0.8 |
Competitive Advantage:
Fire resistance, excellent thermal conductivity and resistance, excellent acoustical property, light weight
