Product Details:
Payment & Shipping Terms:
|
| Density: | 10, 12, 16, 20, 24, 28, 32, 48 Kg/m3 | Length: | 5500 - 30000 Mm |
|---|---|---|---|
| Product Name: | Glass Wool Blanket | Surface: | Black Glass Tissue |
| Thickness: | 20 - 100 Mm | Width: | 600 900 1200 Mm |
| High Light: | fiber glass wool insulation,fiberglass blanket insulation,sound absorption glass wool blanket insulation |
||

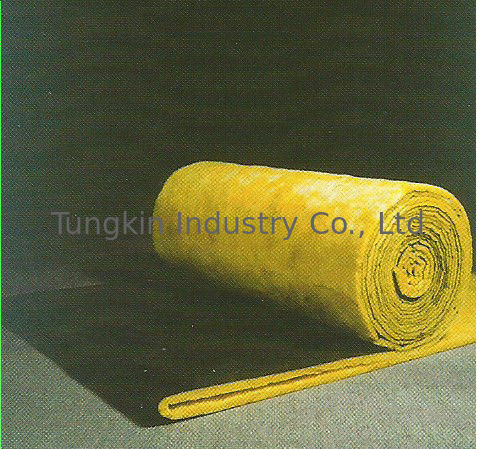

Sound Absorption Glass Wool Blanket / Felt Roll Faced With Black Glass Tissue
Quick Detail:
Glasswool blanket faced with black glass tissue to be used as the thermal and insulation material buildings and other equipments also has excellent properties of sound absorption
Description:
Tungkin glasswool blanket faced with black glass tissue is made from flexible glasswool blanket laminated with black glass tissue (BGT)
Applications:
Tungkin glasswool blanket faced with black glass tissue is intended for use in commercial, institutional ,industrial and residential construction as thermal and acoustical insulation of heating air-conditioning and interior of dual-temperature duct work, air handling equipment and plenums operating at air velocities up to 30 m/s (6000 fpm) and temperatures to121 °c. It also used as an efficient sound absorption treatment of walls and ceilings, acoustic enclosures, generator rooms, studious and others.
Specifications:
Standard size:
|
Density (Kg/m3) |
10 |
12 |
16 |
20 |
24 |
32 |
48 |
|
Thickness (mm) |
|
38 |
25 |
25 |
25 |
25 |
25 |
|
50 |
50 |
40 |
40 |
40 |
40 |
40 |
|
|
75 |
75 |
50 |
50 |
50 |
50 |
50 |
|
|
100 |
100 |
75 |
75 |
75 |
|
|
|
|
150 |
150 |
100 |
100 |
100 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Length (mm) |
5500-30000
|
||||||
|
Width (mm) |
600 900 1200
|
||||||
Main Technical Datas |
|||||||
|
Density
|
Tolerance |
Thermal Conductivity At24°C(+5-2) |
Service Temperature
|
Fiber Diameter
|
Shot Content
|
Moisture Resistance
|
Combustibility |
|
(Kg/m3) |
|
W/ (m.k) |
°C |
mm |
% |
% |
|
|
10 |
+2 -1 |
<=0.04 |
>=350 |
5-8 |
<=0.2 |
<=1.0 |
(A) Non-combustible |
|
12 |
<=0.039 |
||||||
|
16 |
±2 |
||||||
|
20 |
<=0.037 |
||||||
|
24 |
<=0.035 |
>=350 |
|||||
|
28 |
|||||||
|
32 |
±3 |
||||||
Chart of Thermal conductivity
(Reverberation room method)
|
Density (kg/m3)
|
Thickness (mm) |
250,500,1000,2000HZ (Average) |
|
10, 12 |
50 |
0.6 |
|
75, 100 |
0.8 |
|
|
16,20 |
25 |
0.4 |
|
40, 50 |
0.6 |
|
|
75, 100 |
0.8 |
|
|
24,28,32 |
25, 40 |
0.7 |
|
50,75, 100 |
0.8 |
|
|
48 |
20,25 |
0.6 |
|
|
40,50 |
0.8 |
Competitive Advantage:
Fire resistance, excellent thermal conductivity and resistance, excellent acoustical property, light weight
