| Density: | 170 / 200 / 220 / 240 Kg/m3 | Length: | 915mm |
|---|---|---|---|
| Material: | Calcium Silicate | Product Name: | Calcium Silicate Block |
| Temperature Scope: | 650 °C | Width: | 304mm , 305mm |
| High Light: | calcium silicate bricks,calcium silicate thermal insulation |
||
High Density Calcium Silicate Block Insulation 100% Asbestos Free OEM ODM
Specification:
|
Technical Property (Type-I 650°C) |
|||||||
|
Item |
Unit |
TUNGKIN- 200 |
TUNGKIN- 220 |
JIS A-9510 No.2-22 |
ASTM C-533 Type I |
TUNGKIN- 170 |
JIS A-9510 No.2-17 |
|
Density |
Kg/m3 |
<=200 |
<=220 |
<=220 |
<=240 |
<=170 |
<=170 |
|
Service Temperature |
°C (°F) |
<=650 (<=1200) |
<=650 (<=1200) |
<=650 |
<=649 (<=1200) |
<=650 (<=1200) |
<=650 |
|
Compressive Strength |
Mpa (kgf/cm2) |
>=0.55 (>=5.61) |
>=0.58 (>=5.92) |
|
>=0.414 |
>=0.51 (>=5.20) |
|
|
Thermal Conductivity |
W/m.k (70±5°C) |
<=0.060 |
<=0.062 |
<=0.062 |
<=0.065 |
<=0.054 |
<=0.055 |
|
Moisture |
% |
<=5 |
<=5 |
|
|
<=5 |
|
|
Linear Shrinkage (650°C 16h) |
% |
<=2.0 |
<=2.0 |
<=2.0 |
<=2.0 |
<=2.0 |
<=2.0 |
|
Bending Strength |
Mpa (kgf/cm2) |
>=0.42 (>=4.28) |
>=0.43 (>=4.38) |
>=0.3 (>=3.1) |
>=0.310 |
>=0.41 (>=4.18) |
>=0.2 (>=2.0) |
The cure of Thermal conductivity
|
Standard size |
|
|
Width |
304mm,305mm, |
|
Length |
915mm |
|
Thickness |
25mm 30mm 40mm 50mm 60mm 65mm 70mm 75mm 80mm 90mm |
Description:

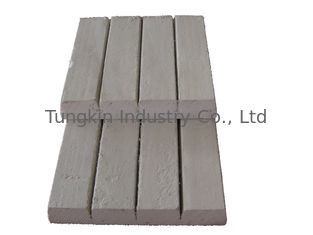

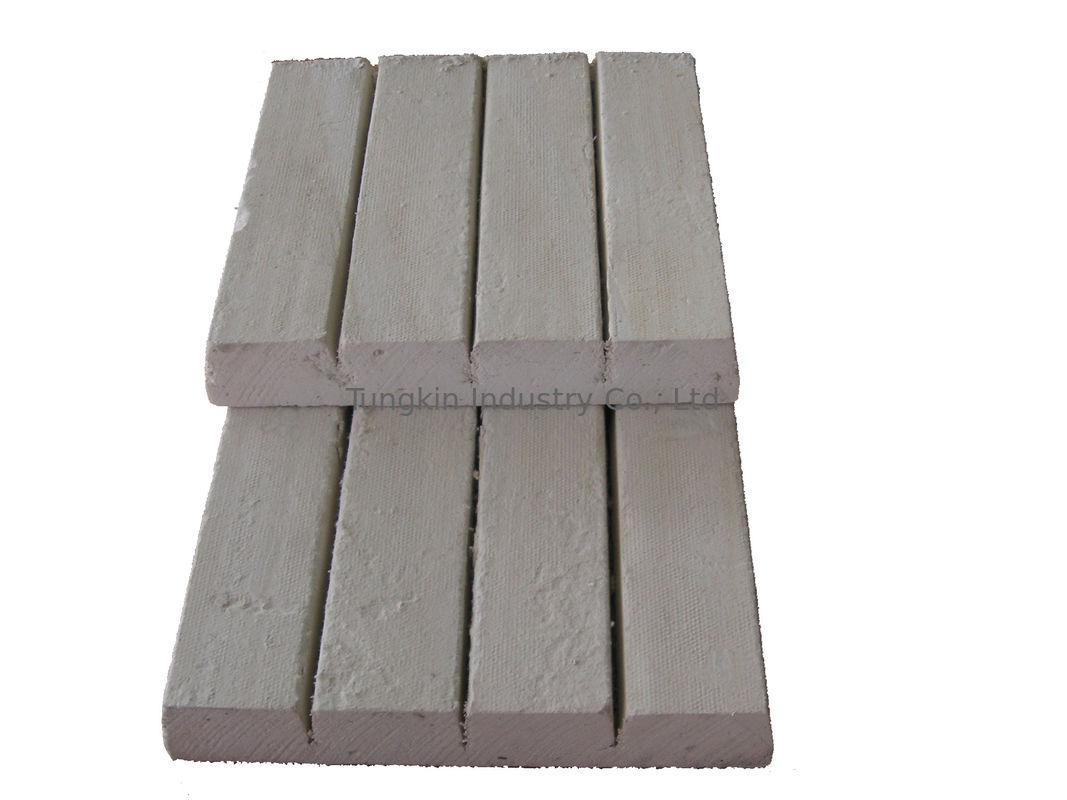

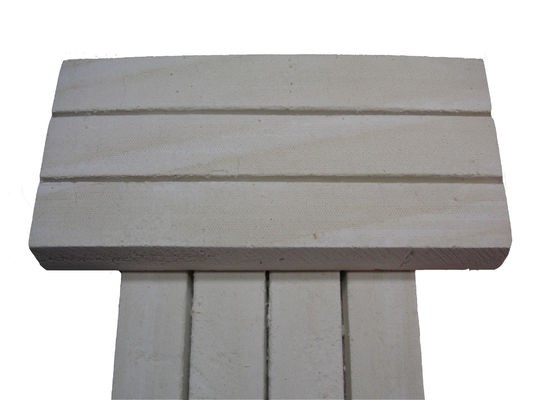

Tungkin Calcium silicate block with 3V grooves is a micro-porous structure insulation material is made of inorganic siliceous material and hydrous calcium silicate powder. It is a white, asbestos free and rigid insulation product..This product has service temperature up to 650°C (1200°F)
Applications:
Calcium silicate product has the characteristic of excellent thermal performance, high service temperature, high compressive and bending stress is widely used in power plants, petrochemical plants, pipeline systems equipment as well as heating pipe network system.
Competitive Advantage:
1,Fire resistance,
2,Light weight, high service temperature up to 650°C( (1200°F))
