Product Details:
Payment & Shipping Terms:
|
| Color: | White | Density: | 170 / 200 / 220 / 240 Kg/m3 |
|---|---|---|---|
| Material: | Calcium Silicate | Product Name: | Calcium Silicate Pipe Cover |
| Temperature Scope: | 650 °C | Feature: | Fire-retardant,Thermal-insulated ,moisture Proof ,sound Insulated |
| High Light: | calcium silicate pipe insulation,thermal insulation calcium silicate |
||

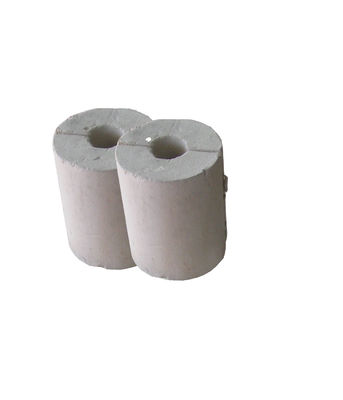

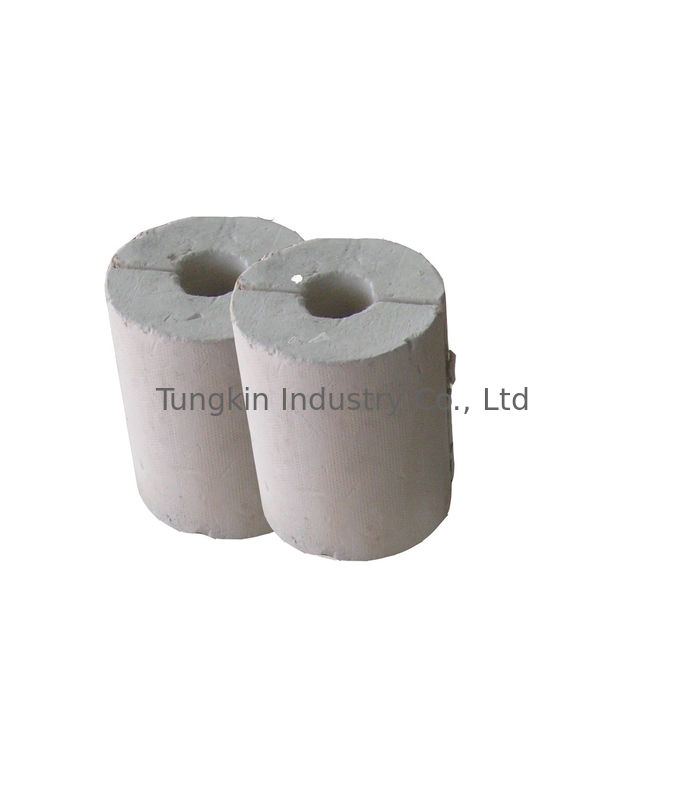

650 °C White Calcium Silicate Pipe Covering Insulation Material 600mm Length
Description:
Tungkin Calcium silicate pipe insulation 650ºC is a micro-porous structure insulation material is made of inorganic siliceous material and hydrous calcium silicate powder. It is a white, asbestos free and rigid insulation product. Calcium silicate pipe covers has service temperature up to 650 °C (1200°F)
Specification:
|
Technical Property (Type-I 650°C) |
|||||||
|
Item |
Unit |
TUNGKIN- 200 |
TUNGKIN- 220 |
JIS A-9510 No.2-22 |
ASTM C-533 Type I |
TUNGKIN- 170 |
JIS A-9510 No.2-17 |
|
Density |
Kg/m3 |
<=200 |
<=220 |
<=220 |
<=240 |
<=170 |
<=170 |
|
Service Temperature |
°C (°F) |
<=650 (<=1200) |
<=650 (<=1200) |
<=650 |
<=649 (<=1200) |
<=650 (<=1200) |
<=650 |
|
Compressive Strength |
Mpa (kgf/cm2) |
>=0.55 (>=5.61) |
>=0.58 (>=5.92) |
|
>=0.414 |
>=0.51 (>=5.20) |
|
|
Thermal Conductivity |
W/m.k (70±5°C) |
<=0.060 |
<=0.062 |
<=0.062 |
<=0.065 |
<=0.054 |
<=0.055 |
|
Moisture |
% |
<=5 |
<=5 |
|
|
<=5 |
|
|
Linear Shrinkage (650°C 16h) |
% |
<=2.0 |
<=2.0 |
<=2.0 |
<=2.0 |
<=2.0 |
<=2.0 |
|
Bending Strength |
Mpa (kgf/cm2) |
>=0.42 (>=4.28) |
>=0.43 (>=4.38) |
>=0.3 (>=3.1) |
>=0.310 |
>=0.41 (>=4.18) |
>=0.2 (>=2.0) |
The cure of Thermal conductivity
Standard size-Pipe Cover |
|
|
Inside Diameter |
16mm(1/4”)-4800mm(188”) |
|
Length |
600mm 610mm |
|
Thickness |
25mm 30mm 40mm 50mm 60mm 65mm 70mm 75mm 80mm 90mm |
Applications:
Calcium silicate pipe insulation 650ºC has the characteristic of excellent thermal performance, high service temperature, high compressive and bending stress is widely used in power plants, petrochemical plants, pipeline systems equipment as well as heating pipe network system.
Competitive Advantage:
Light weight, fire resistance,
