Product Details:
Payment & Shipping Terms:
|
| Density: | 10kg/m3,128kg/m3 | Length: | 1200mm |
|---|---|---|---|
| Product Name: | Rockwool Dark Board | Thickness: | 50mm,100mm |
| Width: | 600mm | Feature: | High Temperature Resistant |
| High Light: | mineral wool fire insulation,fire resistant building materials,rockwool fire rated insulation wall panel |
||

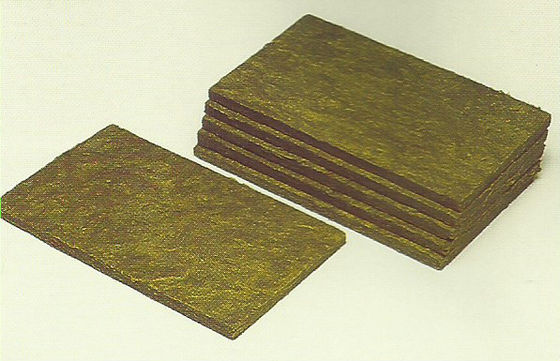

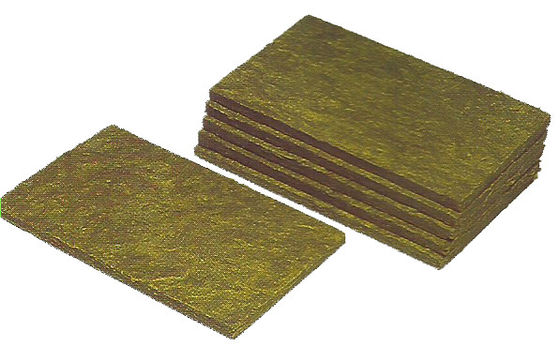

High Temperature Resistant Rockwool Fire Insulation Wall Panel 600mm Width
Description:
Rockwool (mineralwool) products is an economical light weight thermal insulation material which is well recognized as one of the best material for thermal and insulation purpose is manufactured from a mixture of natural rocks (basalt and dolomite) melted at high temperature to form a molten matrix, which is then passed through an air stream that cools the material and forms long fibrous strands. These strands are bonded together to form slabs, blocks, blankets, pipe covers and granulates (non-bonded). The material is chemically and biologically inert and free from plant pathogens.
Applications:

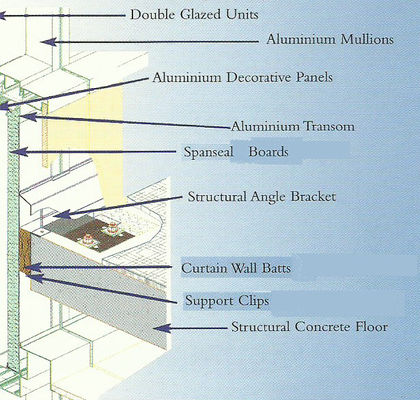

ROCKWOOL dark boards is designed to camouflage the insulation behind glass of the curtain wall is an alternative to black tissue.
Specifications:
Standard diameter and thickness :
Density: 110kg/m3,128kg/m3
Length: 1200mm
Width: 600mm
Thickness:50mm,100mm
Main Technical data
|
ITEM |
DATA |
STANDARD |
|
Working temperature |
750 ºC |
ASTM C411 |
|
Melting point |
>1150 ºC |
GB/T 11835 |
|
Moisture absorption |
<0.5% |
ASTM C 1104 |
|
Shrinkage |
<1% |
ASTM C356 |
|
Combustibility |
Non-combustable |
ASTM E136 |
|
Spread of flame index |
0 |
ASTM E84 |
|
Smoke developed index |
0 |
ASTM E84 |
|
Fire Endurance |
1-4 hours |
ASTM E119/JIS A 1304 AS 1530.4-1997 BS 476:Pt22
|
|
Acidity Coefficient |
1.8% |
GB/T5480 |
|
Corrosiveness |
Non- corrosive |
ASTM C665 |
Competitive Advantage:

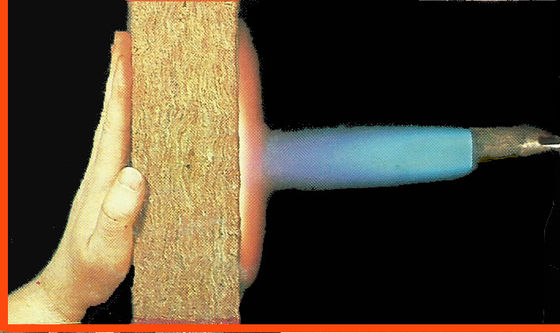

High temperature resistance, dark colour
